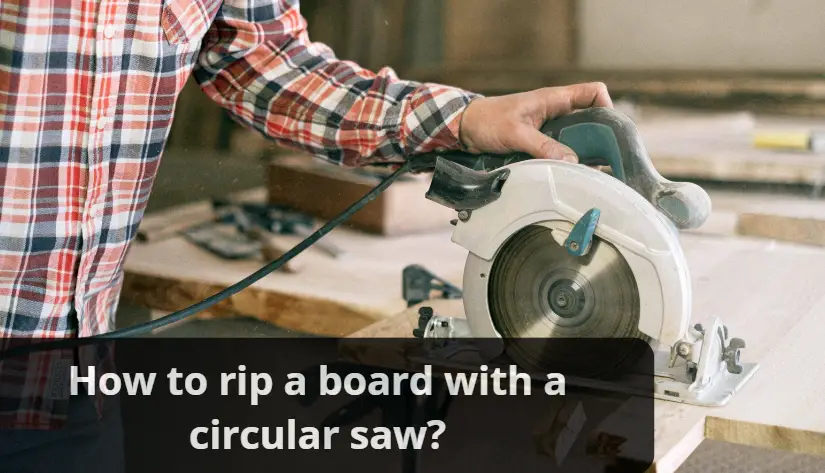

How to rip a board with a circular saw?

How to rip a board with a circular saw?

Ripping a board with a circular saw is a straightforward process if you follow these steps. Here’s how you can do it:

Tools and Materials:

• Circular saw
• Straight edge (a guide like a long level or a clamp-on guide)
• Clamps
• Measuring tape
• Pencil or marker
• Safety equipment (glasses, ear protection, dust mask)
• Sawhorses or a stable cutting surface

Steps:

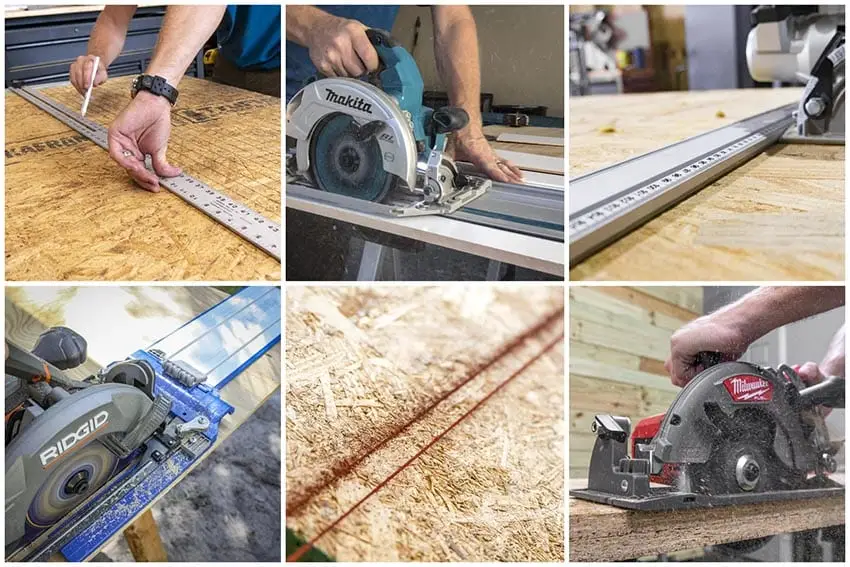

1. Measure and Mark the Cut Line:
   • Measure the width you need to cut and mark it on the board with a pencil.
   • Use a straight edge or measuring tape to extend the line across the board.
2. Set the Depth of the Saw Blade:
   • Adjust the circular saw blade to be just slightly deeper than the thickness of the board you are cutting. About 1/8 to 1/4 inch deeper is usually enough.
3. Secure the Board:
   • Place the board on sawhorses or a stable surface where it won’t shift during cutting. Ensure the portion you want to keep is well-supported.
   • Clamp the board in place to keep it steady during the cut.
4. Use a Guide for a Straight Cut:
   • To ensure a straight cut, clamp a straight edge parallel to the cut line. Align the guide at a distance equal to the distance from the saw blade to the edge of the saw’s base plate.
   • You can use a commercial saw guide or a long level or board that is perfectly straight.
5. Position the Saw:
   • Line up the saw blade with your cut line. The shoe of the saw should rest against the straight edge to keep the cut straight.
6. Make the Cut:
   • Hold the saw firmly with both hands, with one hand on the trigger and the other supporting the front handle.
   • Start the saw, and once it’s at full speed, gently push the saw forward along the cut line, keeping it against the guide.
   • Keep your motion steady and allow the saw to do the work; don’t force it.
7. Finish the Cut:
   • Once the cut is complete, let go of the trigger and wait for the blade to stop before setting the saw down.
8. Check the Cut:
   • Double-check your cut for accuracy. If it’s a little off, you can clean up the edge with a planer or sander.

Tips:

• Always wear proper safety gear.
• Double-check your measurements and guide alignment before starting the saw.
• Practice on a scrap piece if you’re new to using a circular saw.

What is circular saw?

A circular saw is a power tool that uses a rotating, toothed disc or blade to cut through materials like wood, metal, plastic, and masonry. It is a versatile tool commonly used in construction, woodworking, and DIY projects.

Key Features of a Circular Saw:

1. Blade: The blade is a circular, toothed disc that spins rapidly to make cuts. Different blades are used for different materials.
2. Motor: A motor drives the blade, and it can either be electric (corded or cordless) or pneumatic (powered by compressed air).
3. Base Plate/Shoe: This flat part of the saw rests on the surface of the material being cut and helps guide the saw along the cut line.
4. Depth and Bevel Adjustments: Many circular saws allow you to adjust the cutting depth and make beveled (angled) cuts.
5. Guard: A blade guard covers the blade when not in use and retracts as you cut, protecting you from accidental contact with the spinning blade.
6. Handle and Trigger: The user holds the saw by its handle, and the trigger starts and stops the blade rotation.

Common Uses:

• Ripping: Cutting wood along its grain (lengthwise).
• Crosscutting: Cutting wood across its grain (widthwise).
• Bevel Cuts: Making angled cuts, often used for trim or molding.
• Sheet Goods: Cutting large panels of plywood, MDF, or other sheet materials.

Types of Circular Saws:

1. Sidewinder/Direct Drive: The motor is positioned beside the blade, making the saw lightweight and fast.
2. Worm Drive: The motor is behind the blade, providing more torque for heavier cuts. These are often used in construction for framing or cutting dense materials.

Safety Considerations:

• Always wear safety gear (glasses, ear protection).
• Ensure the blade guard works properly.
• Use both hands for better control and stability.
• Wait for the blade to stop spinning before setting the saw down.
